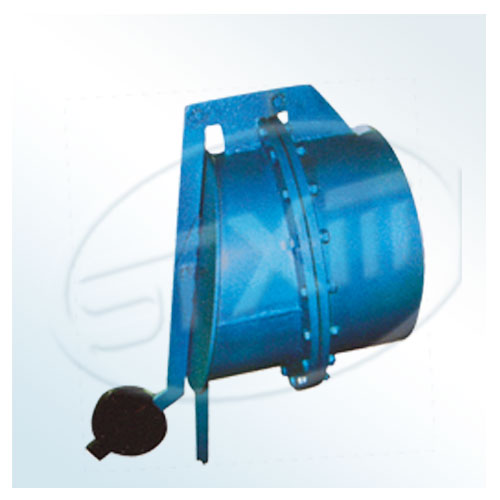

Vent valve product description:
Model: XB-42-1
Specifications: 300 ~ 1600
Nominal pressure: ≤ 0.1-0.15MPa
Suitable temperature: ≤ 350 ℃
Medium: compressed explosive gases
Mounting: welded, flanged
Vent valve from the valve body, blasting film holder, valve cover, hammer and other parts. Blasting film holder mounted on the middle, bolted to the valve body. When the system overpressure, blast membrane rupture, instant relief, after the reset valve cover pops gravity. The vent valve is required when replacing the membrane vertically downward blast off valve and holder. Blasting films owned by the user according to the technical characteristics, mainly used in building materials, metallurgy, petroleum, chemical and other sectors.
